Availability
|
usually in stock
|
Product Weight
|
35.45kg
|
Assembly
|
fully assembled
|
Weather Rating
|
outdoors
|
Material
|

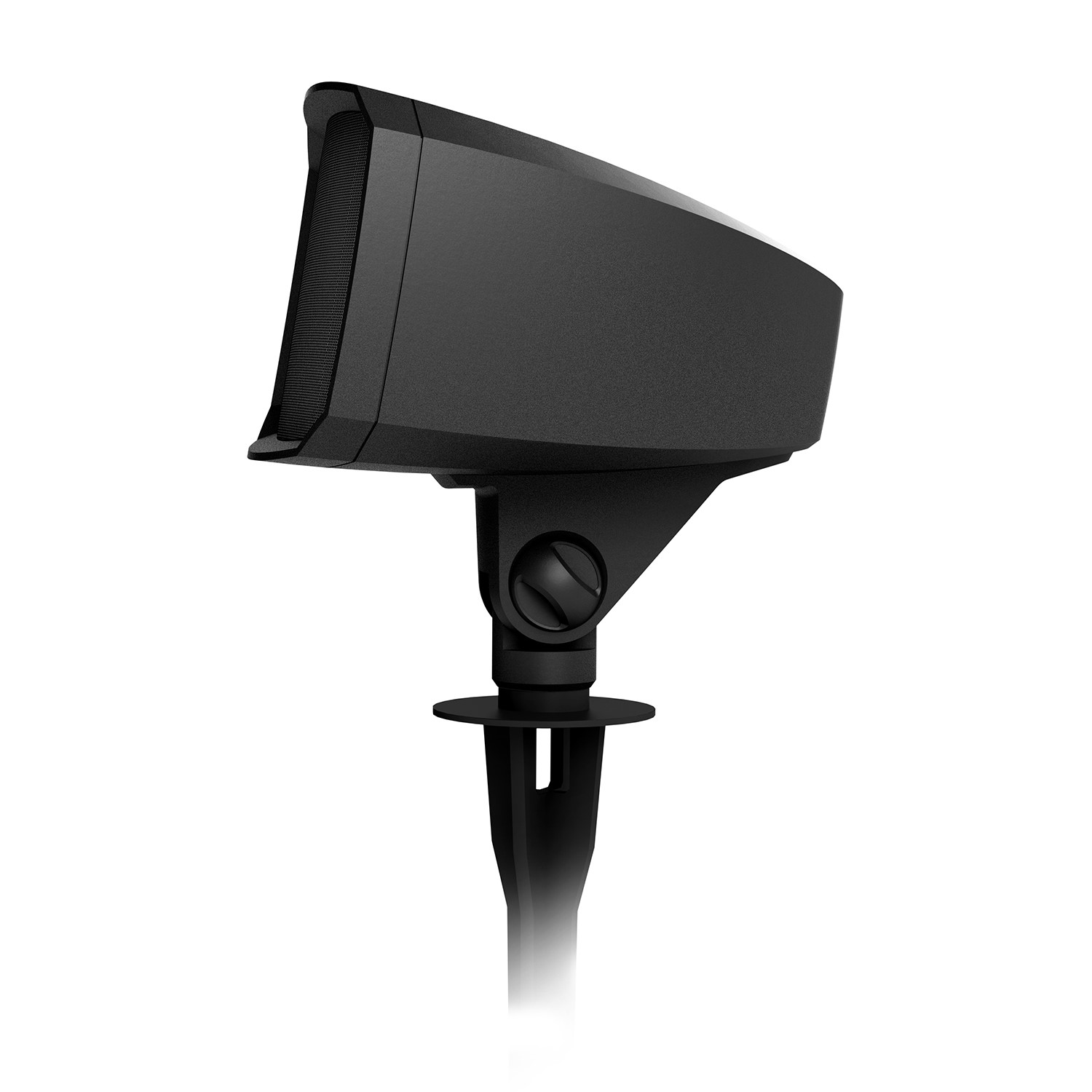

Speaker - Aluminium Dome Tweeter, Enclosure: UV treated, Glass-filled ABS cabinet

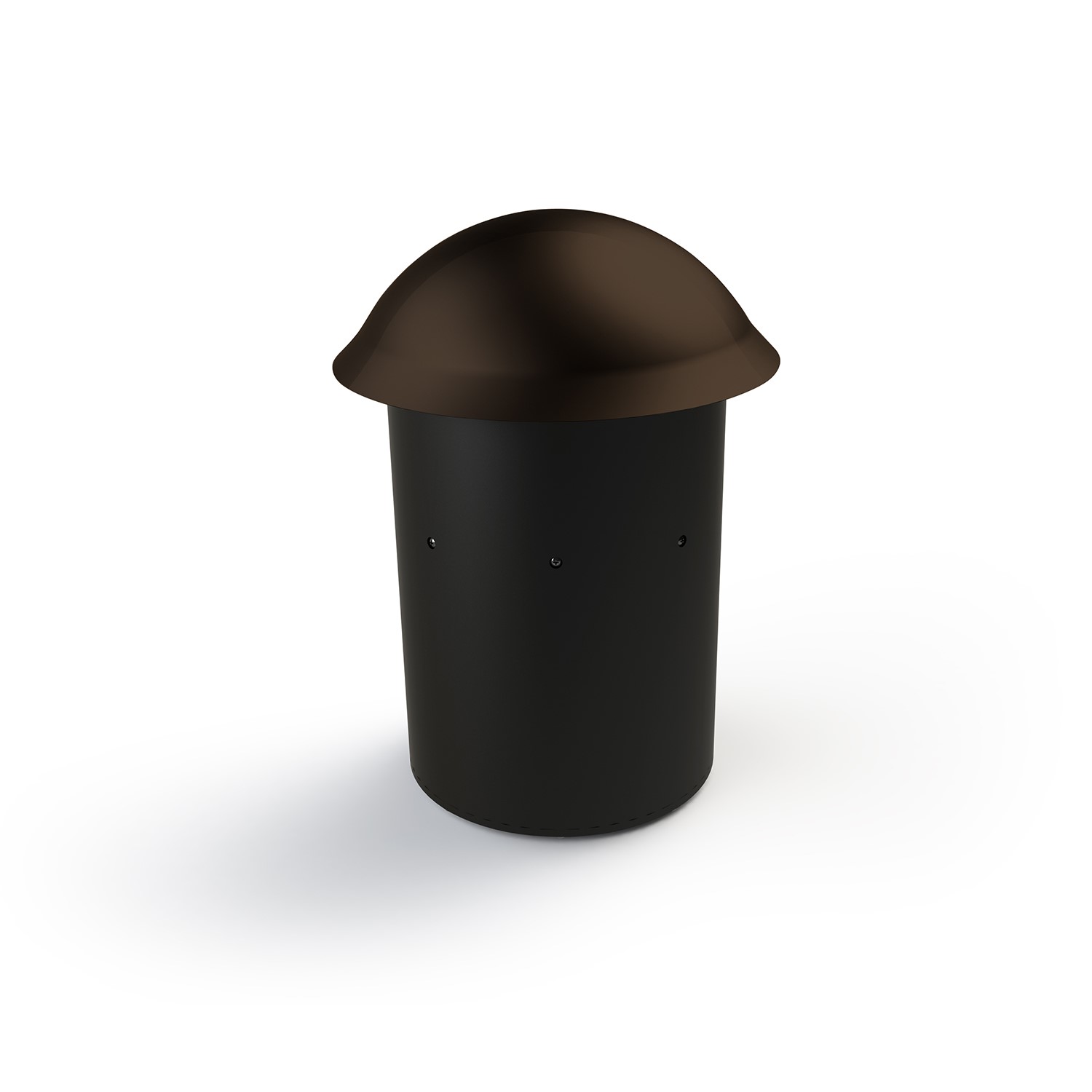

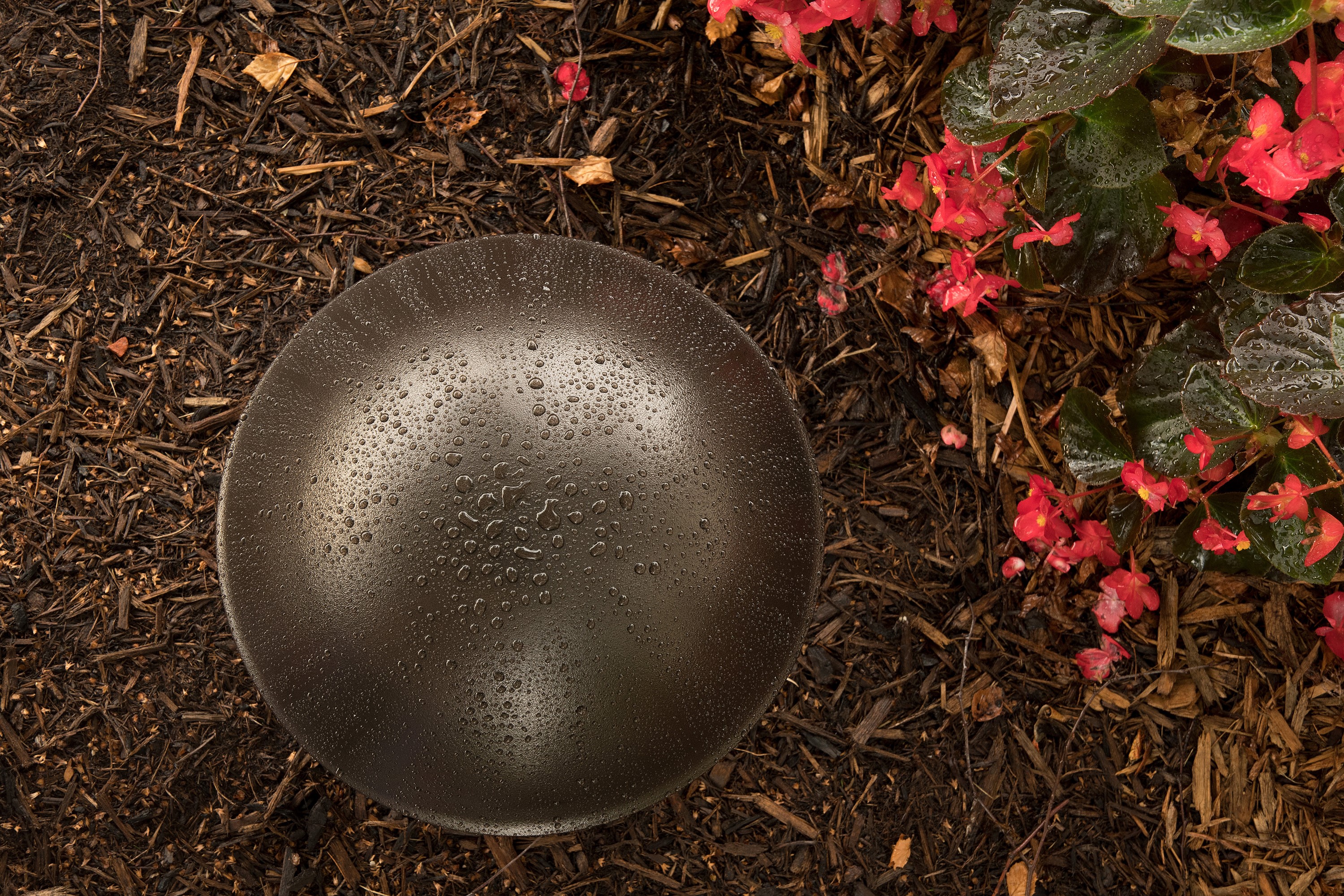

Subwoofer - Canopy: Rustproof, UV Resistant Aluminum, Cabinet: Heavy Duty, High Impact Polyethylene

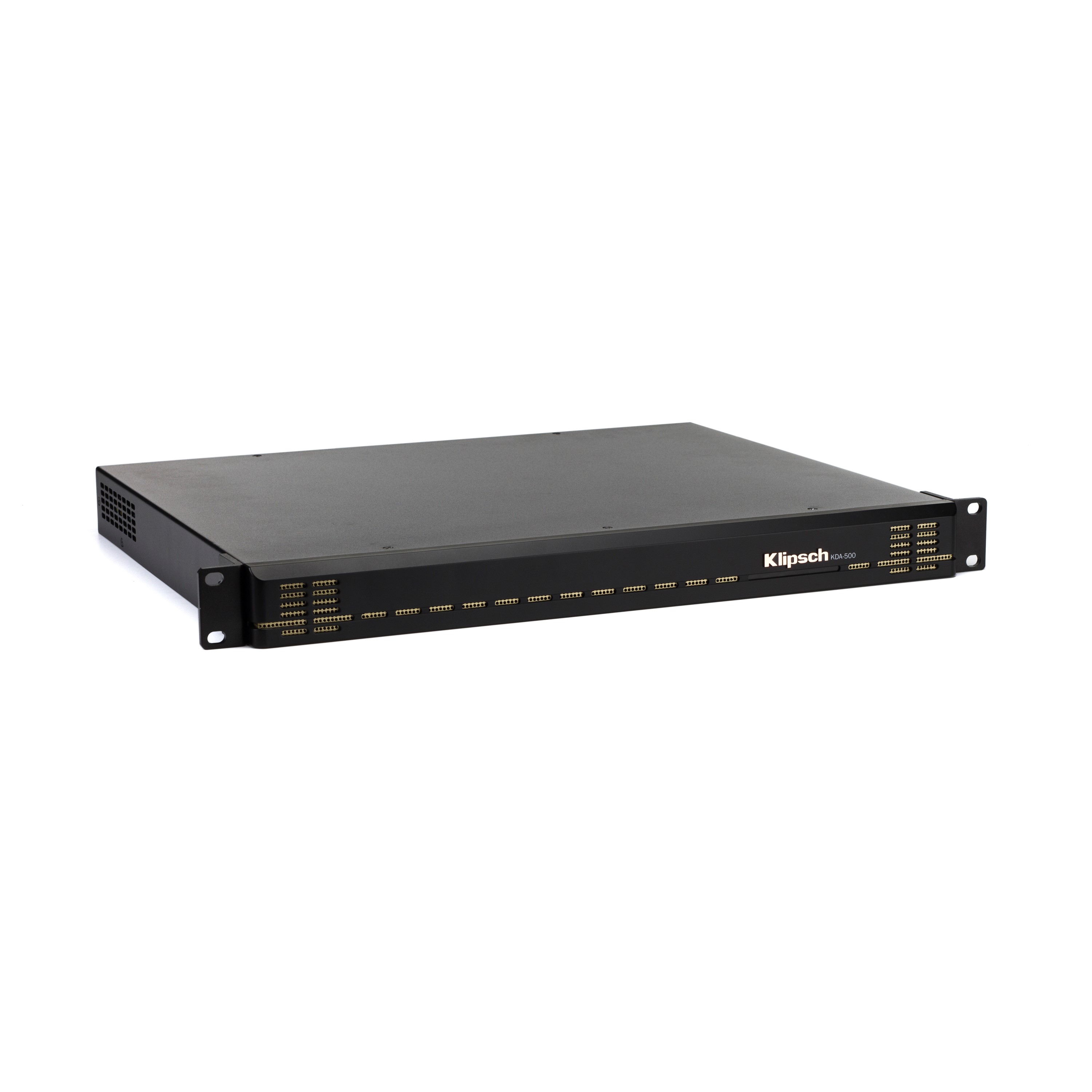

Amplifier - Front Face: ABS plastic, Case: Machine formed steel

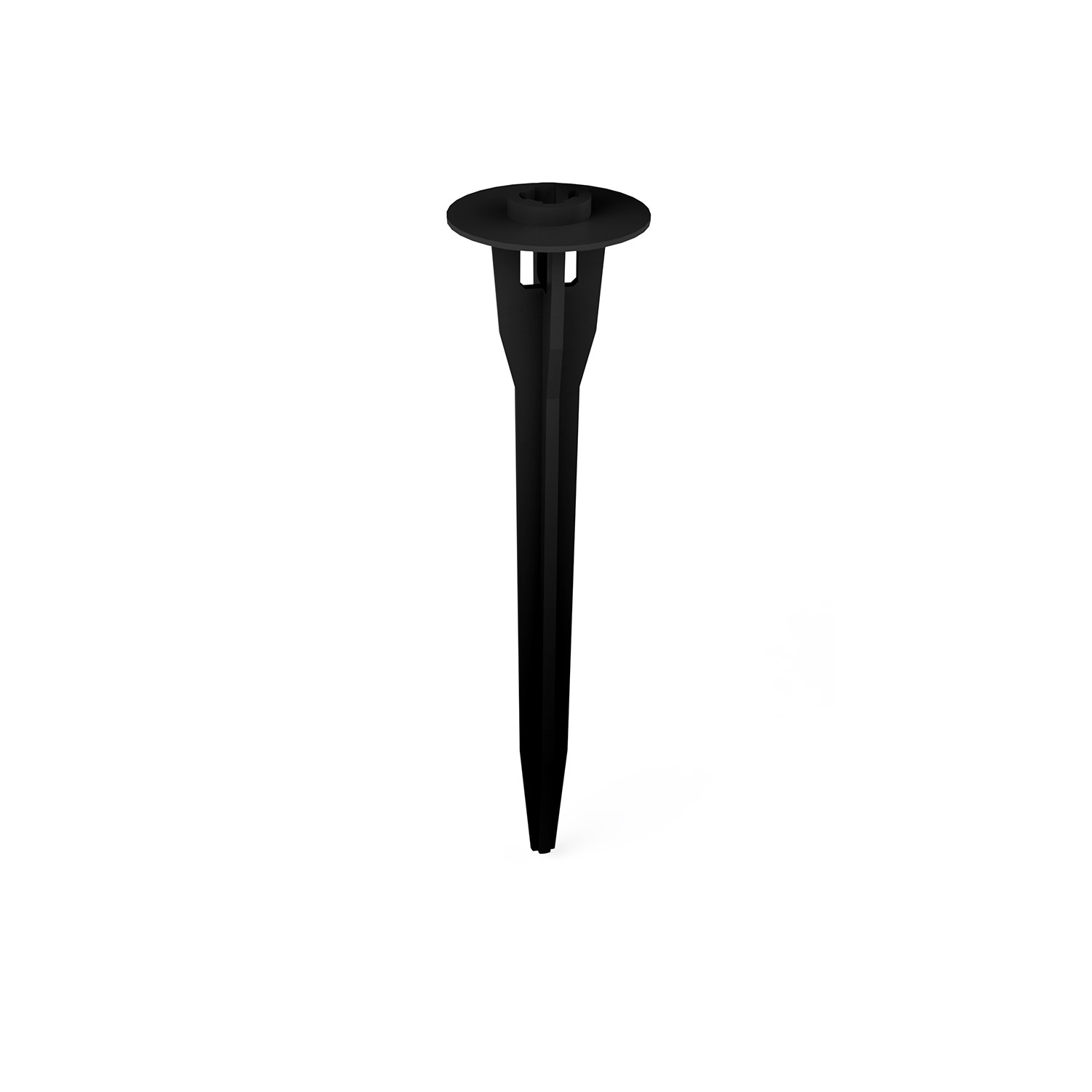

Stake - Ground Stake: Glass-Filled (25%) ABS, Security Plate: Galvanised Stamped Steel
|
Amplifier Type
|
High Efficiency Class G/H
|
System Type
|
Band Pass Half Burial
|
Sensitivity
|
Speaker:
88 dB
Subwoofer:
90 dB
Amplifier:
750mV Balanced, 0dBU
|
Impedance
|
Subwoofer:
- 70V @ 250W (Transformerless)
- 8 Ohm Stereo
- 4 Ohm Mono
Amplifier:
Balanced 40k
|
Dimensions
|
Speaker: 160 X 174 X 216<br>
Subwoofer: 300 X 85 X 85<br>
Amplifier: 44 X 483 X 363<br>
Stake: 300 X 85 X 85 |
Frequency Range
|
Speaker:
* 130Hz - 30kHz +/- 3dB
* 113Hz - 32kHz +/- 6dB
* 93Hz - 36kHz +/- 10dB
Subwoofer:
* 47Hz - 103Hz +/- 3dB
* 40Hz - 110Hz +/- 6dB
* 33Hz - 123Hz +/- 10dB |
Woofer
|
10" (25.4cm) IMG Dual Voice Coil |
High Frequency Driver
|
1" (2.54cm) Aluminum Dome Tweeter mated to an all new 105º custom Tractrix® horn |
Low Frequency Driver
|
5" (12.7cm) IMG Woofer |

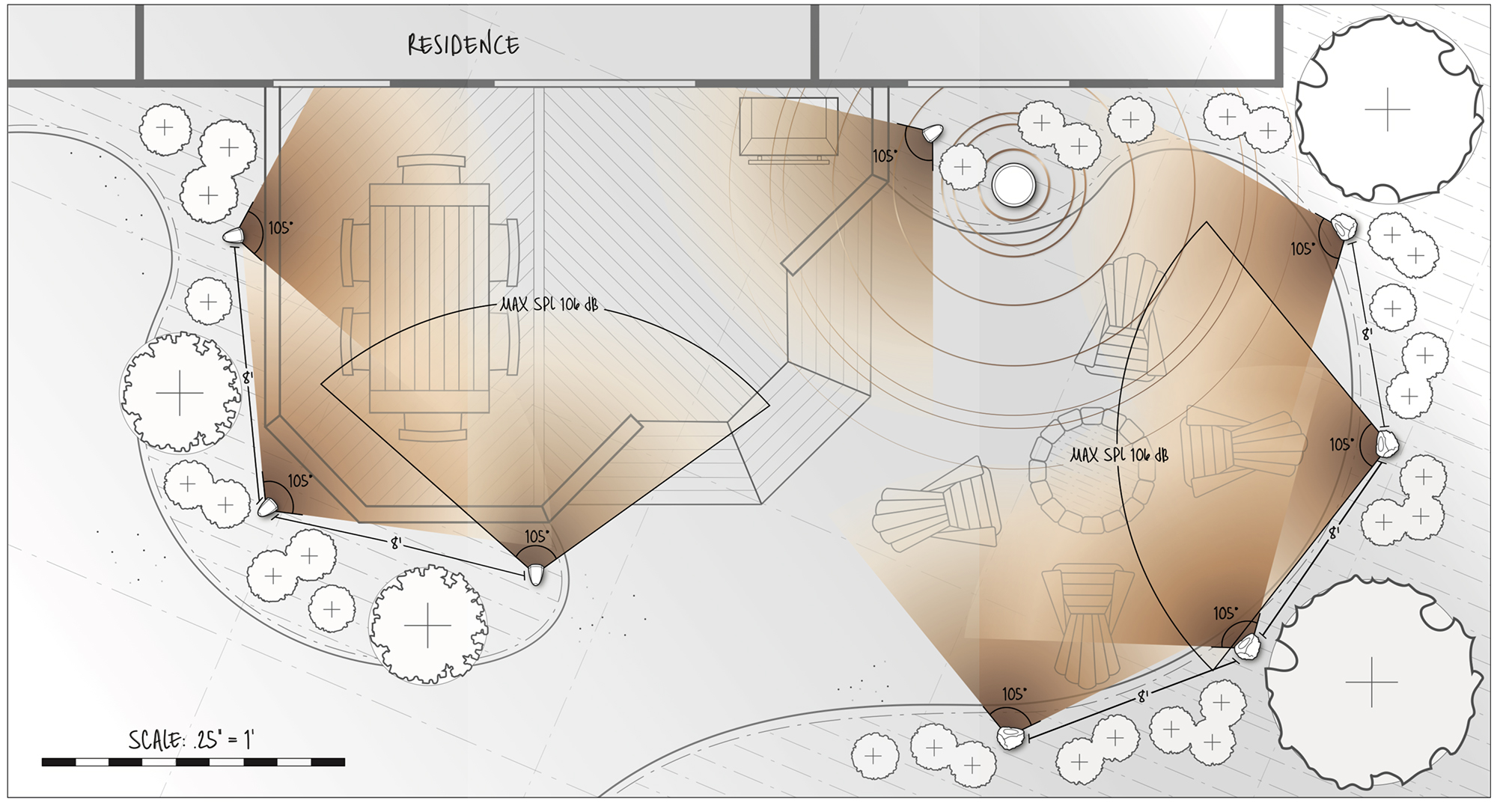

Coverage Angle
|
105° |
Power
|
Speaker:
60W Peak
Subwoofer:
200W
Amplifier:
* 500W Total System Power
* 4 x 125W Per Channel |
Inputs
|
* Balanced: 4 x Phoenix Line Level (up to 12 AWG wire)
* Unbalanced: 4 x RCA Line Level |
Outputs
|
* 4 x Phoenix Speaker Level (up to 12 AWG wire)
* 4 x RCA Line Level (Throughs) |
THD
|
<1% @ Rated Output |
Signal-To-Noise
|
-100dB Below Rated Output |
70V/100V Tap Settings
|
* 70V: 3.75W, 7.5W, 15W, 30W
* 100V: 7.5W , 15W, 30W
* 8 Ohm Bypass |
